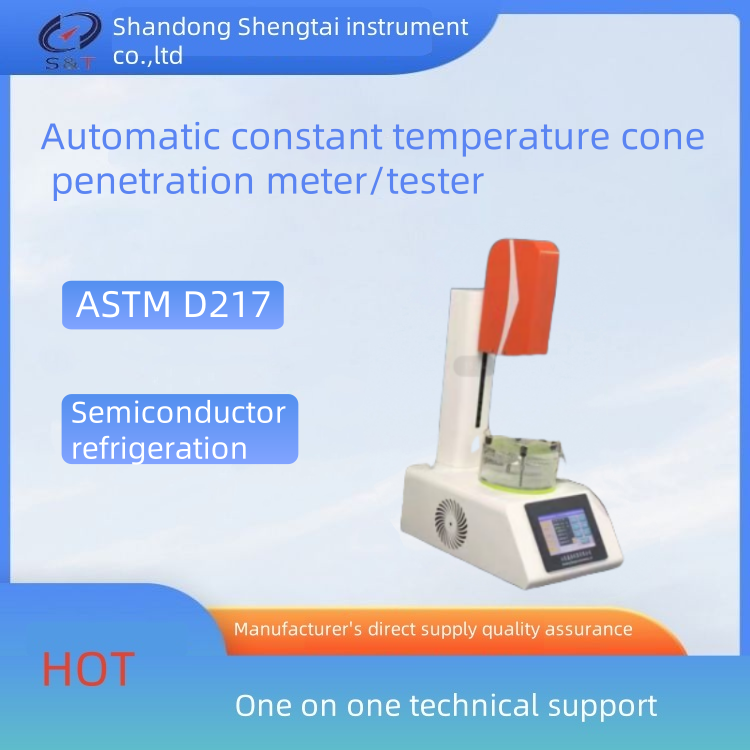

SH017 Automatic Constant Temperature cone/needle penetration Tester is designed and manufactured according to the technical requirements and relevant regulations of GB/T269 ASTM D217 and GB/T4509 ASTM D5 standards It is mainly suitable for testing the cone penetration of grease (or Vaseline).
Meet Standard: ASTM D217 ASTM D1403 ASTM D 5
ASTM D217 Grease Cone Needle Penetration Meter Machine
ASTM D217 Standard Lubricating Grease Cone Penetration Tester
ASTM D5 constant temperature Penetration Tester with Water Bath and Penetrometer
ASTM D217 Cone Penetration Analyzer for Lubricating Grease Penetration Analysis
I. Main technical features
Meet the standards: GB/T269 ASTM D217 and GB/T4509 ASTM D5
1. Upgraded to 7-inch color LCD display;
2, constant temperature refrigeration method: external semiconductor refrigeration.
3, detection method: high precision displacement sensor.
4. After upgrade, 199 groups of historical data can be stored for easy query;
At the same time can be equipped with U disk output function
II. Main technical parameters
| Model | SH017 Determination of the grease cone Penetration tester |
| Measurement Range | 0 Penetration~680 Penetrations |
| Resolution | 0.1 Penetration(0.01mm) |
| Constant temperature refrigeration method | semiconductor refrigeration |
| Taper precision | ±1 cone degree |
| Standard cone | 102.5±0.05g according to ASTM D217 and GB/T269 |
| Application | Petroleum Asphalt Testing OR Determination of the grease cone Penetration |
| Temperature control accuracy | 25±0.1ºC |
| Stirring | automatically stirred by a magnetic stirrer |
| Transport Package | Plywood Case |
| Result output | at the same time can be equipped with U disk output function, output to the PC for long-term storage |
| Output format | The output format of the result USB flash disk is CSV or EXCEL. |
| Standard printing | standard micro printer automatic measurement automatic thermal printing |
Packing list:
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Instrument host | set | 1 | |
| 2 | Standard cone | piece | 1 | |
| 3 | Standard sample box | piece | 1 | |
| 4 | Heating and cooling thermostatic bath | set | 1 | Warm up in winter and cool down in summer |
| 5 | Power cord | piece | 1 | |
| 6 | instructions | copy | 1 | |
| 7 | Certificate warranty card | copy | 1 |
|
