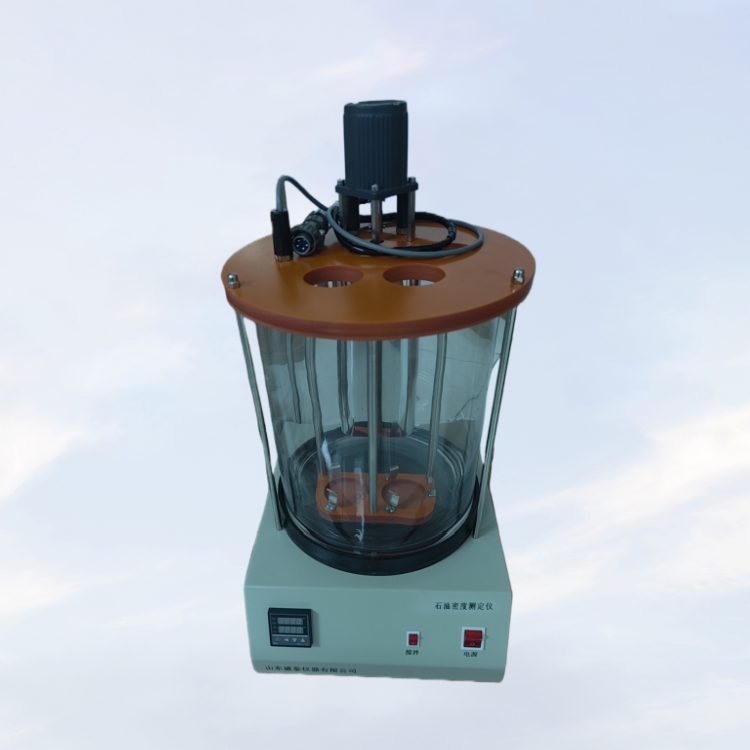

# ASTM D1298 Density Tester for Crude and Liquid Petroleum Products SH102 (Hydrometer Method)
The SH102 petroleum density tester is designed and manufactured in full compliance with Chinese national standard **GB/T 1884: Petroleum and liquid petroleum products — Determination of density (Hydrometer method)**. Developed by our company, this instrument is specially used for measuring the density of crude oil and liquid petroleum products.
**Standards complied with**:
GB/T 1884, ISO 3675, ASTM D1298, DIN 51757, JIS K 2249, IP 160
**Alternative product names**:
- ASTM D1298 Density, Relative Density and API Hydrometer Apparatus
- ASTM D1298 Petroleum Products Density Tester
- ASTM D1298 Crude Oil Hydrometer Tester
- ASTM D1298 Density Tester for Crude and Liquid Petroleum Products
## I. Main Technical Features
1. The instrument features an integrated structure with an ergonomically designed control panel and soft-touch keys. It has a compact, modern structure, comfortable operation and an elegant appearance.
2. Equipped with a digital-display temperature controller, it provides fast temperature control, quick response, low overshoot, and a temperature control accuracy of **±0.2 °C**.
3. The unit uses a thick glass bath tank and an electric stirring system, ensuring clear sample observation and uniform temperature distribution throughout the bath.
| Power supply |
AC(220±10%)V,50Hz |
| Tube cylinder |
500ml |
| Heating power |
700W |
| Temperature controller |
(1) Range: Ambient to 100℃
(2) Accuracy: ±0.1℃
(3) Sensor: Pt100
|
| Thermometer |
Mercury-in-glass thermometer. Scale division is 0.2℃ |
| Measuring hole number: |
2 holes |
| 10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm |
| the bath volume |
Ф 250 x 300 mm. |
| Overall dimension: 320 * 380 * 530mm weight;12kg |
| Cooler size: 330*330*350mm weight:10kg |
Packing List
| S/N |
Name |
Quantity |
Unit |
Note |
| 1 |
Host |
1 |
set |
|
| 2 |
Water bath crock |
1 |
piece |
|
| 3 |
Bath cover assembly |
1 |
set |
2 measuring cylinders can be placed |
| 4 |
Cryogenic refrigerating plant |
1 |
set |
Compressor refrigeration |
| 5 |
Control cable |
1 |
piece |
|
| 6 |
fuse tube |
1 |
piece |
|
| 7 |
Measuring cylinder 500 ml |
2 |
piece |
|
| 8 |
Operating instruction |
1 |
copy |
|
| 9 |
packing list |
1 |
copy |
|
| 10 |
Certificate of conformity warranty card |
1 |
copy |
|
10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm
