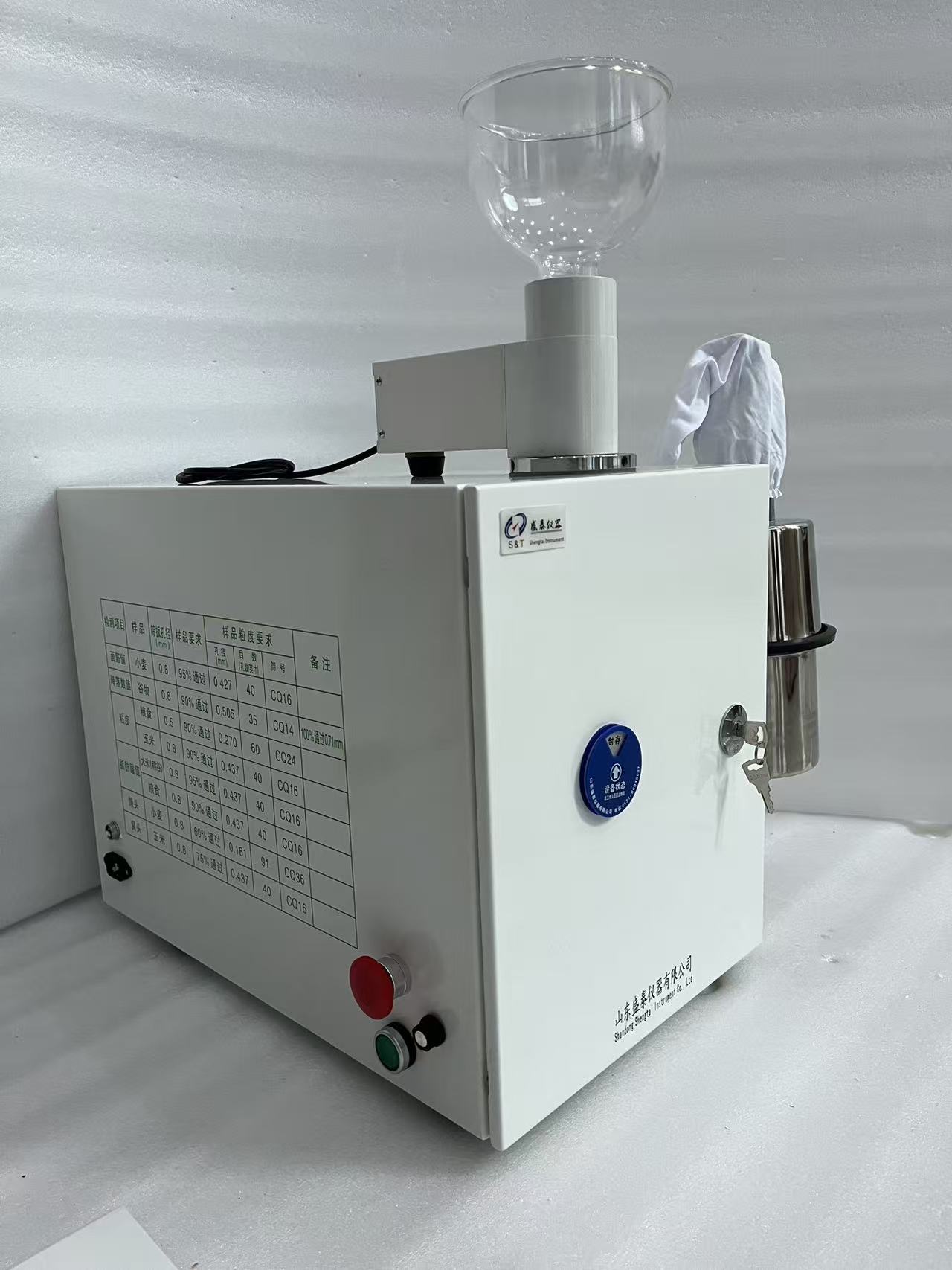

High-Speed Grinding Hammer Type Cyclone Mill for Food Testing with 110mm Workroom Diameter and Motor power 750W

High Speed Hammer Type Cyclone Mill for Food Testing

Work chamber diameter: 110 mm; Motor power: 750 W

The hammer type cyclone mill is a grinding unit featuring an attractive appearance, compact structure, easy to use operation, stable performance and long service life.

Main Characteristics

• High speed and high efficiency grinding for fine size crushed samples
• Simple operation; built in protection switch ensures safe operation
• Advanced cabinet wall sound absorbing materials fitted inside, delivering lower noise level compared with domestic and international counterparts
• Built in motor over temperature protection: the unit shuts down automatically when motor temperature exceeds the preset value; it can be restarted after the temperature returns to normal
• Compatible with optional automatic feeder, which effectively controls feeding speed for high moisture samples and shelled corn to achieve better grinding results

Application Scope

Suitable for sample preparation to test gluten content & quality, grain viscosity, wheat falling number, near infrared component analysis and other indicators.

Technical Parameters

• Power supply: AC220±10 V, 50 Hz
• Motor power: 750 W
• Work chamber diameter: 110 mm
• Rotational speed of grinding hammer: 16 800 r/min
• Sieve plate aperture: 0.5 mm, 0.8 mm, 1.5 mm
• Overall dimension: 530 × 530 × 650 mm
• Operating weight: 51 kg

The characteristics are as follows:
High speed, high efficiency, and fine particles. The sample was hammered into a fine and uniform powder by a high-speed grinding hammer, and passed through a stainless steel sieve with a high-speed airflow to enter the integrator to prepare the sample.
The interior wall of the box is pasted with domestic advanced sound absorption and insulation materials, with lower noise than similar products at home and abroad.
The motor is equipped with a built-in temperature protector. Once the motor exceeds the set temperature, it will automatically stop and restart after the temperature drops to normal.
The hammer type cyclone mill can be directly installed with an automatic feeder, which can effectively control the feeding speed of high moisture samples and shelled grain samples, and improve the crushing effect.
Crushed samples are suitable for the determination of gluten quantity, quality, grain viscosity, wheat falling value, near-infrared composition, and other indicators.
The hammer type cyclone mill is easy to operate and has a built-in protection switch for safe use.
The hammer type cyclone mill is not suitable for the determination of sample moisture.

Technical specifications

Working power supply AC220 ± 10V 50Hz
Motor power 750W
Working chamber diameter 110mm
Rotating speed of grinding hammer 16800r/min
Sieve plate aperture (mm) 0.5, 0.8, 1.5mm
Overall dimension (mm) 530 × 530 × 650mm
Operating Weight 51kg

Test items and sample size

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.
----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list

High-Speed Grinding Hammer Mill for Food Testing

Cyclone Mill with 110mm Workroom Diameter

750W Motor Food Testing Grinding Mill
